Light Tunnel Distortion

The Light Tunnel Distortion node applies a filter that creates tunnel-like effect by clamping the pixels along a circle in the image.

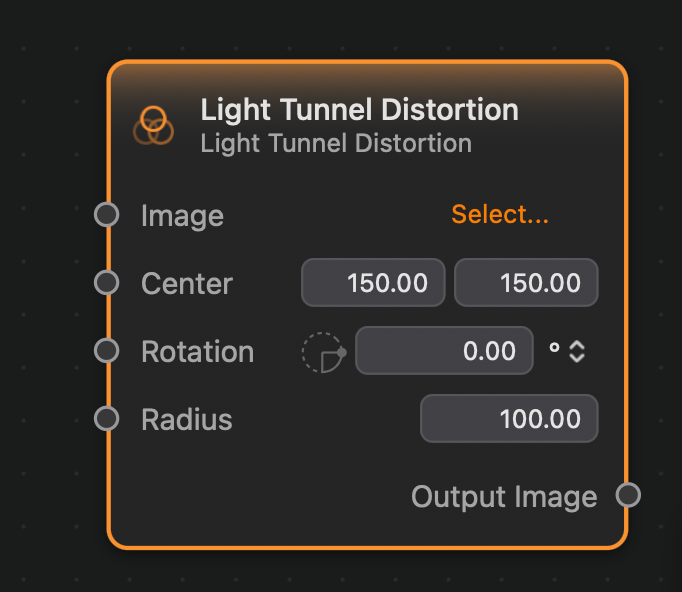

Inputs and Outputs

Inputs:

• Image (Image): The input image.
• Center (Vector 2): The center point of the light tunnel.
• Rotation (Float): The rotation of the fringes.
• Radius (Float): The radius of the light tunnel.

Outputs:

• Output (Image): The output image.

Example

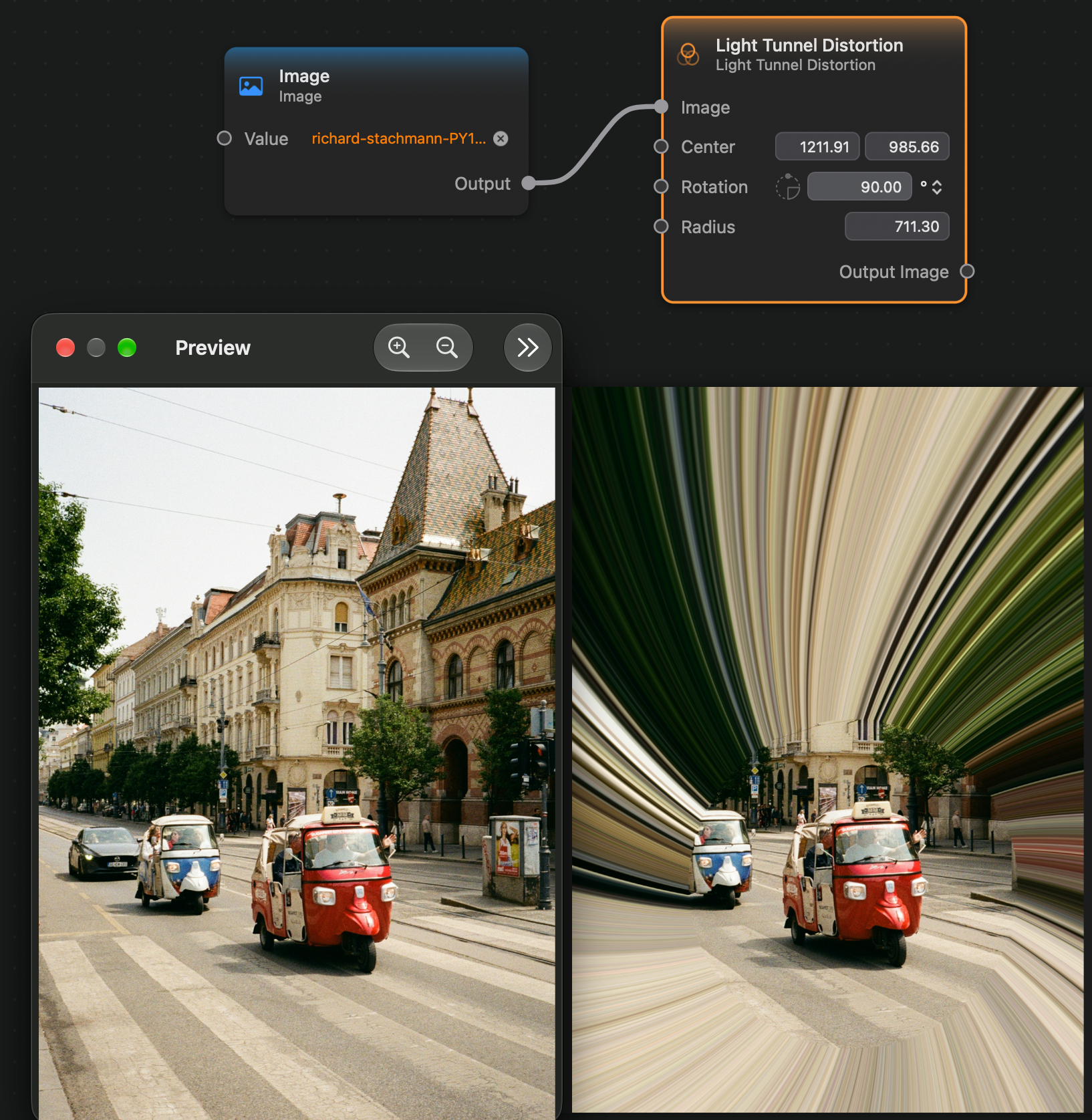

Here is a small example of this node in action:
