Convolution 7x7

The Convolution 7x7 node applies a 7 by 7 convolution kernel to an image.

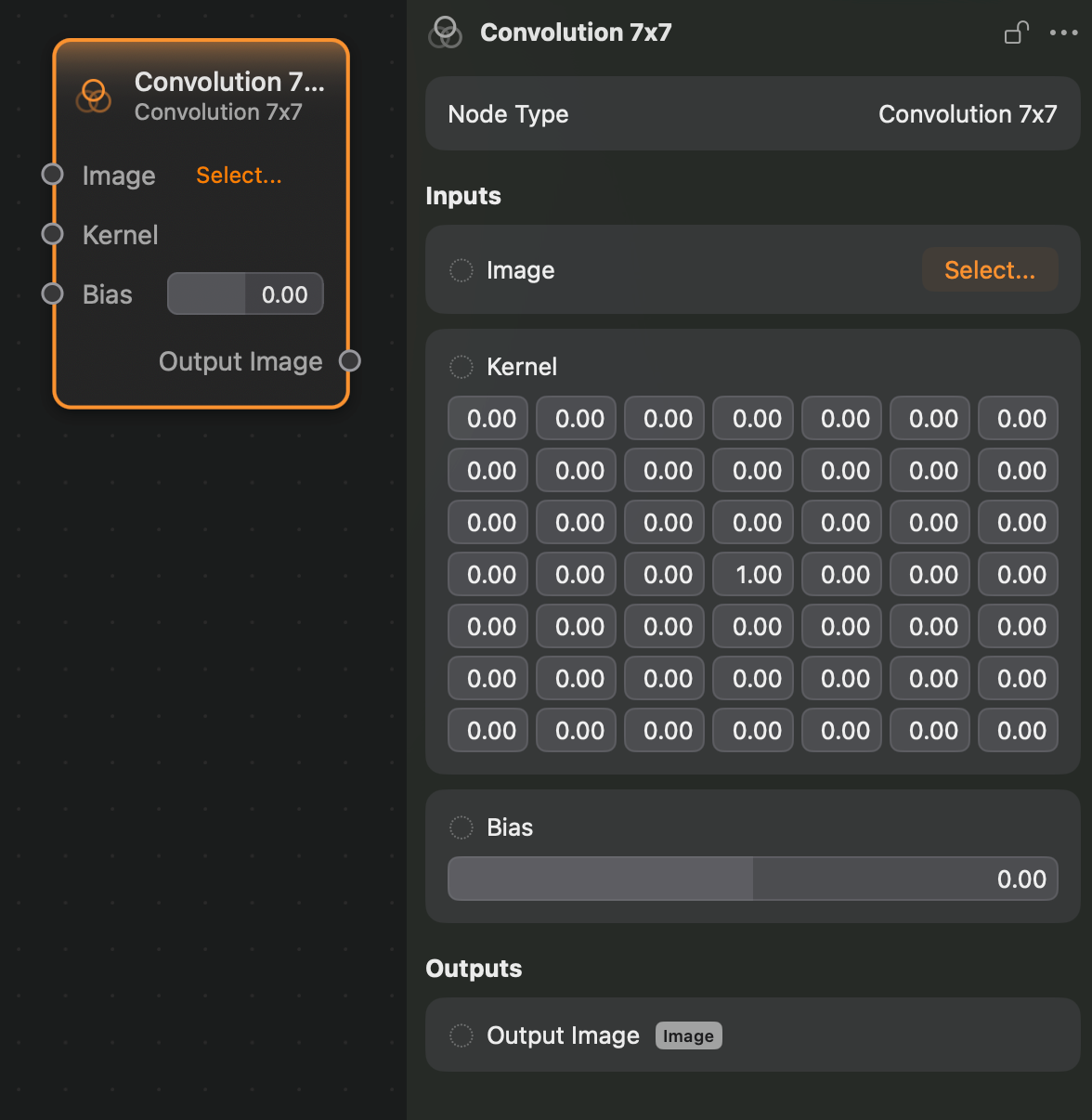

Inputs and Outputs

Inputs:

• Image (Image): The input image.
• Kernel (Matrix 7x7): The kernel matrix.
• Bias (Float): The contrast bias to be added to all color channels.

Outputs:

• Output (Image): The output image.

Example

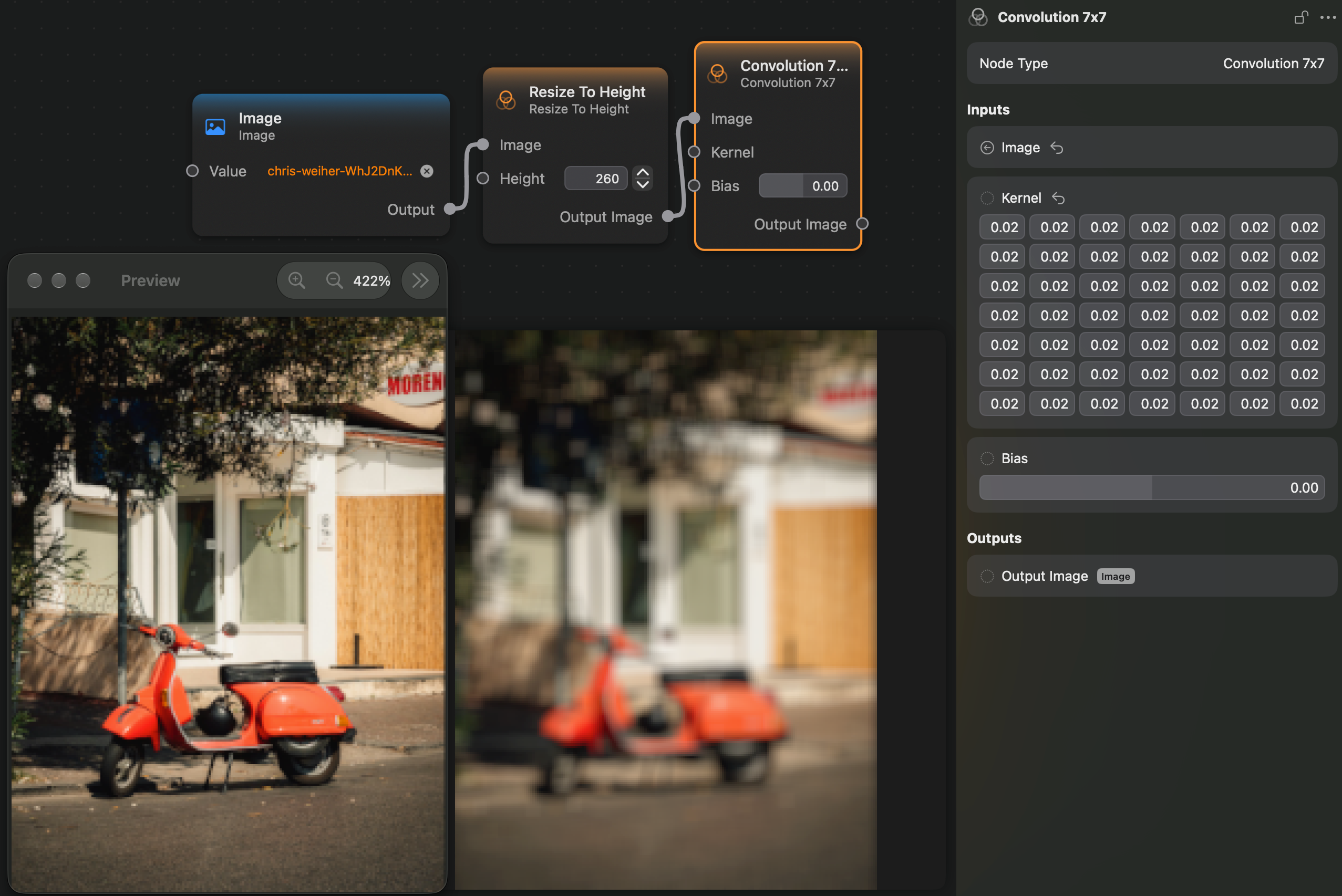

Here we create a 7-pixel radius box blur effect:
