Area Min and Max

The Area Min and Max node outputs an image which is two pixels wide and one pixel tall in which the two colors are, respectively, the color with the minimum RGB value and the color with the maximum RGB value in a given rectangular region.

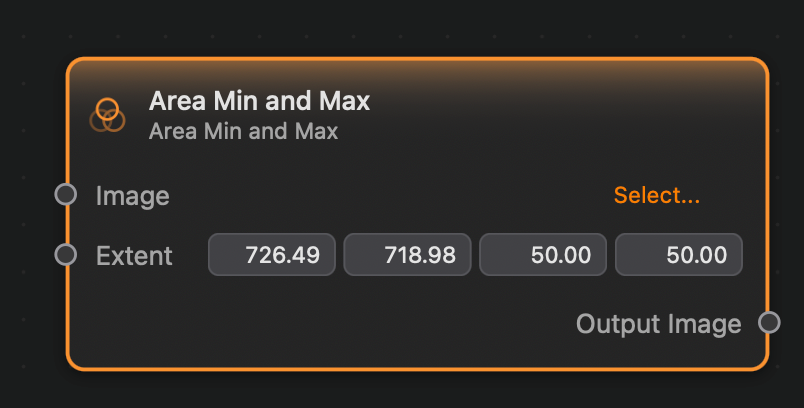

Inputs and Outputs

Inputs:

• Image (Image): The input image.
• Extent (Rectangle): The rectangular area to calculate the average color of the input image.

Outputs:

• Output (Image): The output image.

Example

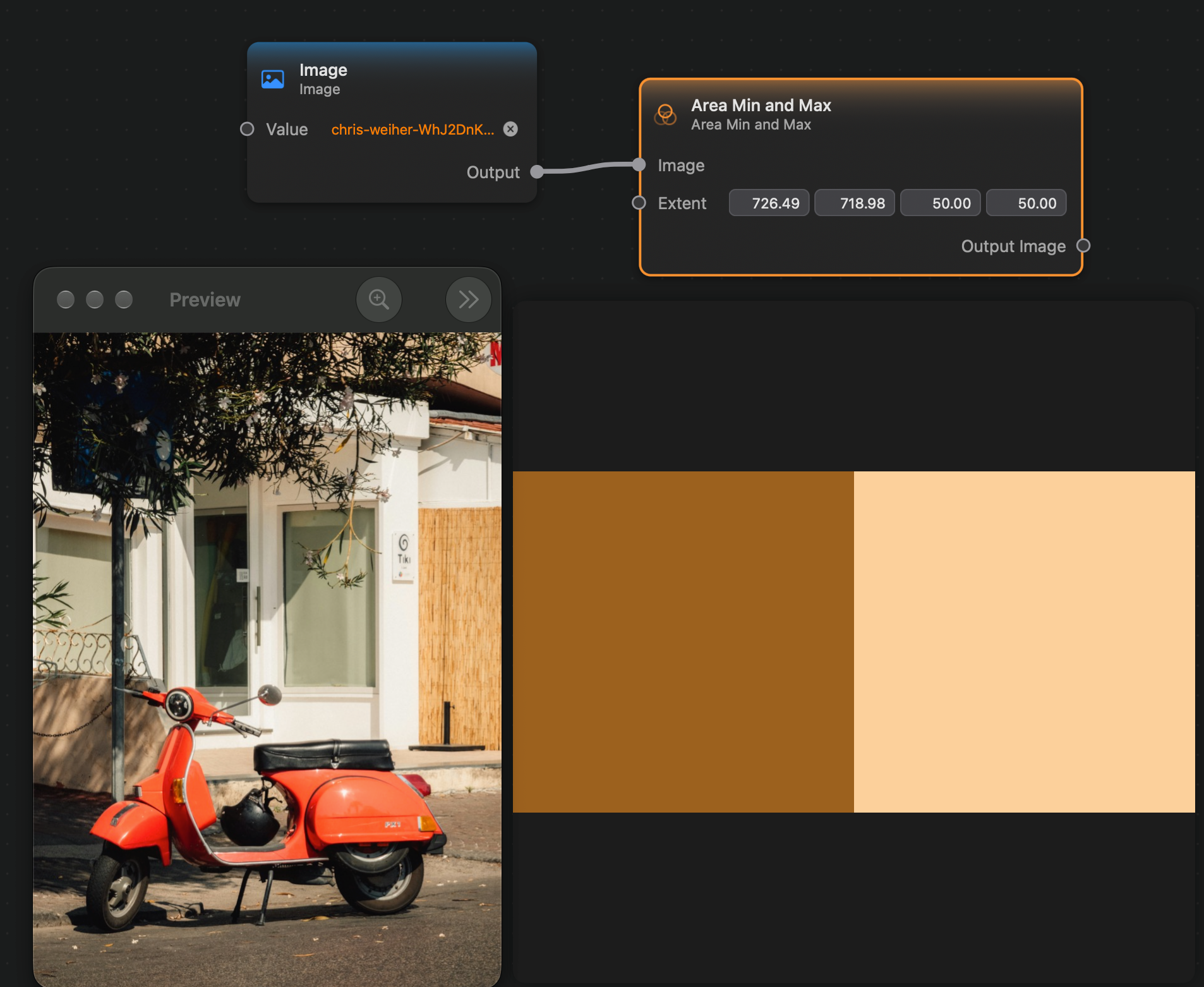

Here is a small example of this node in action:
