Ordered Dither

The Ordered Dither node applies a filter that transform the image into a two-colored image with an ordered dither applied to it.

There are four choices of dither type:

• Bayer 2x2: uses a 2 by 2 Bayer matrix pattern.
• Bayer 4x4: uses a 4 by 4 Bayer matrix pattern.
• Bayer 8x8: uses a 8 by 8 Bayer matrix pattern.
• Noise only: a simple threshold method with no pattern.

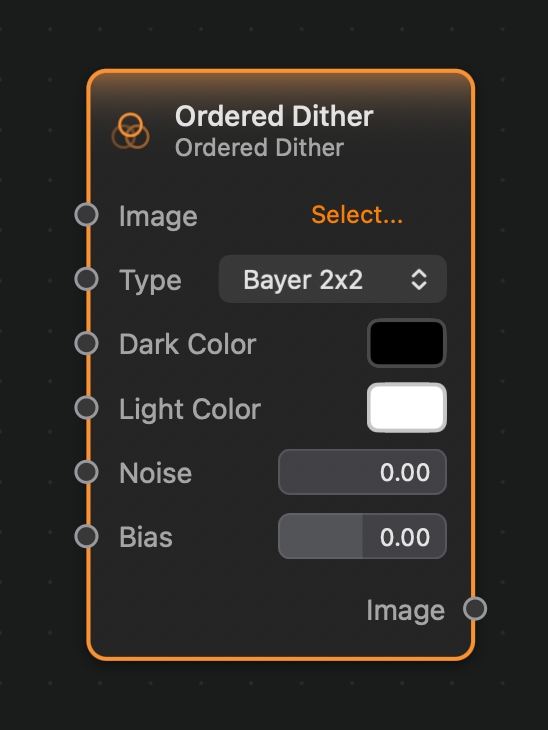

Inputs and Outputs

Inputs:

• Image (Image): The input image.
• Type (Option): The type of ordered dither to perform. Valid options are:
  • Bayer 2x2 (0)
  • Bayer 4x4 (1)
  • Bayer 8x8 (2)
  • Noise only (3)
• Dark Color (Color): The color to use to represent dark portions of the image.
• Light Color (Color): The color to use to represent light portions of the image.
• Noise (Float): The amount of noise to apply to the dither.
• Bias (Float): A bias value, which is a constant value to be added to the dither.

Outputs:

• Output (Image): The output image.

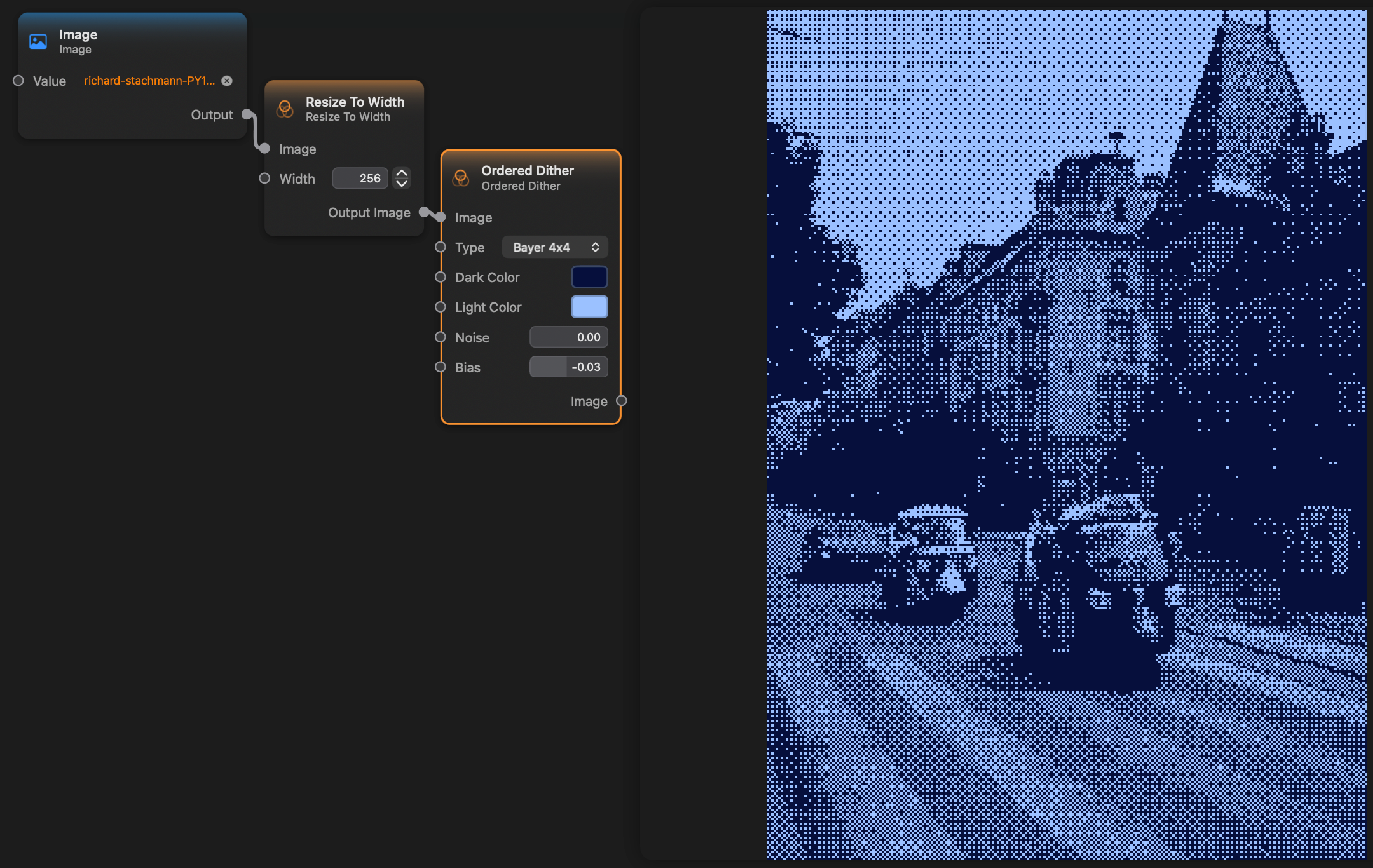

Example

Here is a small example of this node in action:
